GPAD/AC 64 Series

GPAD/AC 64 Series Telescopic Projector Lift

Introduction to Functions

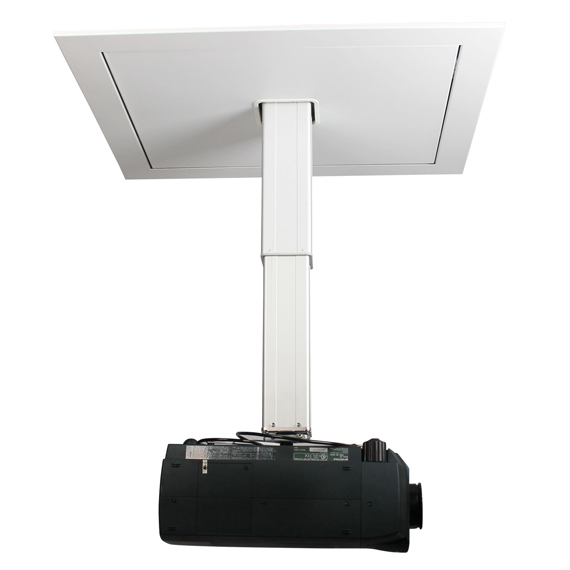

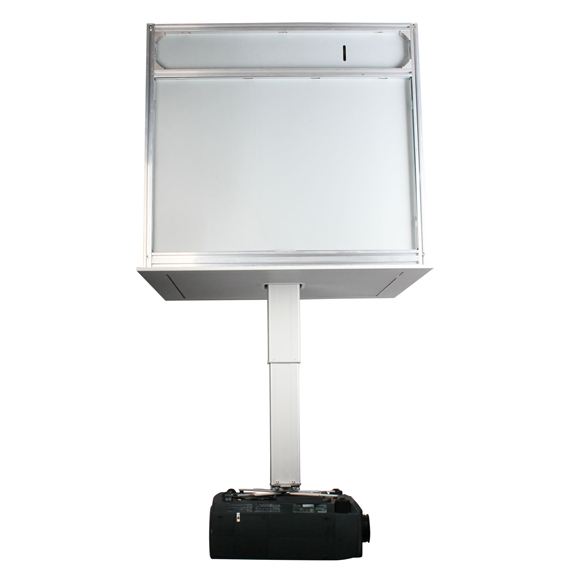

The ceiling lifter of gpad / AC64 series telescopic rod projector can accommodate the majority of 20000 lumen engineering projectors with single pole expansion, simple lines and various decoration styles.

major function

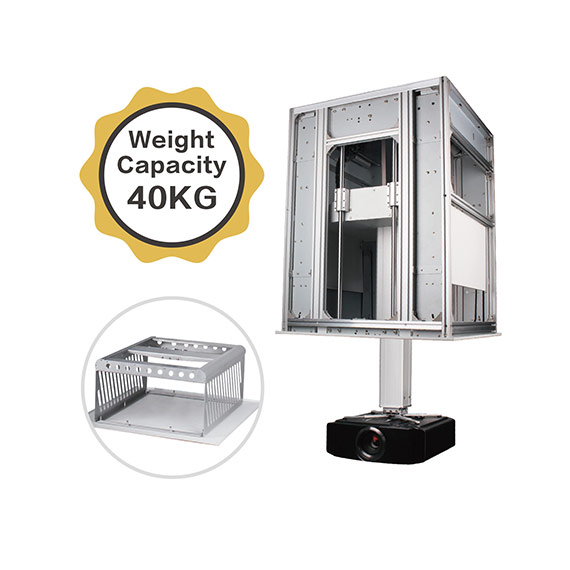

. guide pillar lifting, stable operation, built-in force precision screw connection, multi-point lifting

.The patent of line finance can be lifted and lowered without weight-bearing;

.Multi protection anti falling device, fully enclosed aluminum alloy frame structure, strong and durable; industrial long-running motor;

.Multi section aluminum alloy square tube, double open type inner door; stable operation; high precision encoder, positioning accuracy ≤ 1mm

. built in cable: projector power cable × 1, hdmi2.0 × 1, category 6 network cable × 2; (other requirements can be customized)

.projector universal mounting claw, multi angle adjustable

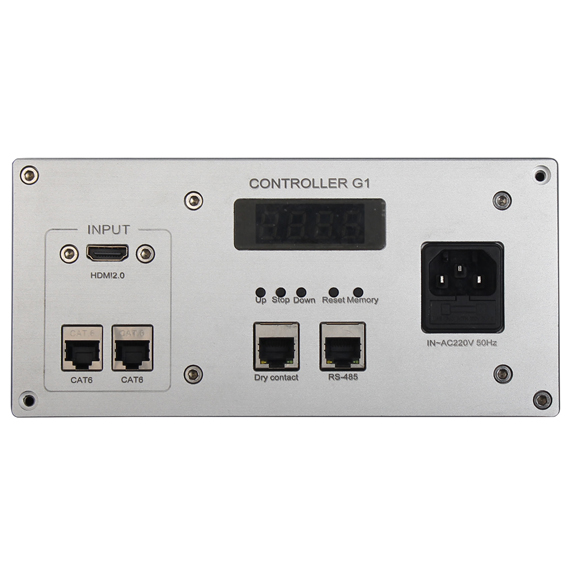

. positioning mode: RF positioning and 485 positioning

.Control mode: RF, weak current dry contact and RS485 code

*The size of the installation projector is recommended for reference only. The actual size shall prevail.

Product Index

Dispose

Basic control mode

parameter

Product Model

GPAD/AC 6450 (Ⅱ)
GPAD/AC 6445 (Ⅱ)
GPAD/AC 6440 (Ⅱ)
GPAD/AC 6435
GPAD/AC 6430
GPAD/AC 6425
GPAD/AC 6420
GPAD/AC 6415
GPAD/AC 6410
GPAD/AC 6405

- Overall dimension(D*W*H)(mm)

  975x825x1652
- Net weight(kg)

  160
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  5000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  175
- Package size (D*W*H)

  1095x945x1802
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975x825x1552
- Net weight(kg)

  155
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  4500
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  170
- Package size (D*W*H)

  1095x945x1702
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975x825x1452
- Net weight(kg)

  150
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  4000
- Lifting accuracy(mm)

  ＜2mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  165
- Package size (D*W*H)

  1095x945x1602
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×1500
- Net weight(kg)

  145
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  3500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  160
- Package size (D*W*H)

  1095x945x1650
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×1375
- Net weight(kg)

  140
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  3000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  155
- Package size (D*W*H)

  1095x945x1525
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×1250
- Net weight(kg)

  135
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  2500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  150
- Package size (D*W*H)

  1095x945x1400
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975x825x1125
- Net weight(kg)

  130
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  2000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  145
- Package size (D*W*H)

  1095x945x1275
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×1000
- Net weight(kg)

  125
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  1500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  140
- Package size (D*W*H)

  1095x945x1150
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×875
- Net weight(kg)

  120
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  1000
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  1015x867
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  135
- Package size (D*W*H)

  1095x945x1025
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  975×825×750
- Net weight(kg)

  100
- Maximum size for projector(D*W*H)(Line + lens)(mm)

  730*620*280
- Maximum load(kg)

  40
- Rated power(w)

  100
- Maximum telescopic stroke(mm)

  500
- Lifting accuracy(mm)

  ＜2 mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  480x945
- Door frame shape(mm)

  867x1015
- Ceiling openings(mm)

  840x990
- Ceiling height(mm)

  ＞H+50
- Angle adjustment(Upper/Lower/Level)

  1/8/4/4
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable

  1
- HDMI 2.0

  1
- Power cord

  1
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  115
- Package size (D*W*H)

  1095x945x900
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode

Installation Control Video

Data Download

Toptu
GPAD/AC 64 Series Instructions
