CABLE MANAGER
GPSS 12 (customized size)

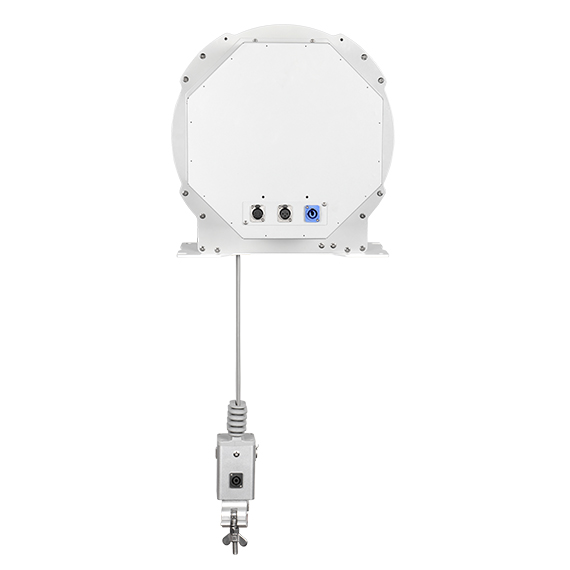

GPSS SERIES MOTORIZED CABLE MANAGER
Introduction to Functions
GPSS12 electric wire take-up, specially developed for high-speed CNC lifting point and stage hoist, has the function of automatic pay-off and take-up, and the pay-off and pay-off can adapt to the lifting point or other lifting equipment with a speed of less than 25 meters per minute.Installed in ceilings or high-altitude formal installations, it is used for remote power supply of hoisting lighting and audio equipment, DMX signal control, network control, built-in active wiring, high-speed automatic same-frequency retraction and release, CAT6 network cable lossless docking and other devices.
major function
Wire take-up cable interface: 2 16A sockets (2 groups of 2.5 square power cords are customized by the customer) 2 5-pin DMx512 interfaces. Or a set of CAT6 network cable and a set of DMX512 interface
Control method: weak point dry contact, RS485
No mechanical upper and lower limit
Maximum cable tension: 8KG
It can control the pay-off independently, and choose to disconnect from the motor control after connecting the truss to achieve high-speed synchronization.
Dispose
Basic control mode
parameter
- GPSS12
-
-
Overall dimension(D*W*H)(mm)
-
Maximum load(kg)8
-
Rated power(w)100
-
Maximum telescopic stroke(mm)12000
-
Lifting accuracy(mm)＜2mm
-
noise(dB)≤55dB
-
Voltage(v)220V/110V
-
jib attachment(mm)
-
Door frame shape(mm)
-
Ceiling openings(mm)
-
Ceiling height(mm)
-
Angle adjustment(Upper/Lower/Level)
-
Weakness Dry Contact(Y/N)√
-
Wireless remote control(Y/N)
-
CAT6 network cable
-
HDMI 2.0
-
Power cord
-
485 Control (Y/N)√
-
Total weight of package + product (kg)
-
Package size (D*W*H)
-
Wireless Control(Y/N)
-
Suitable hole spacing of projector (mm)
-
