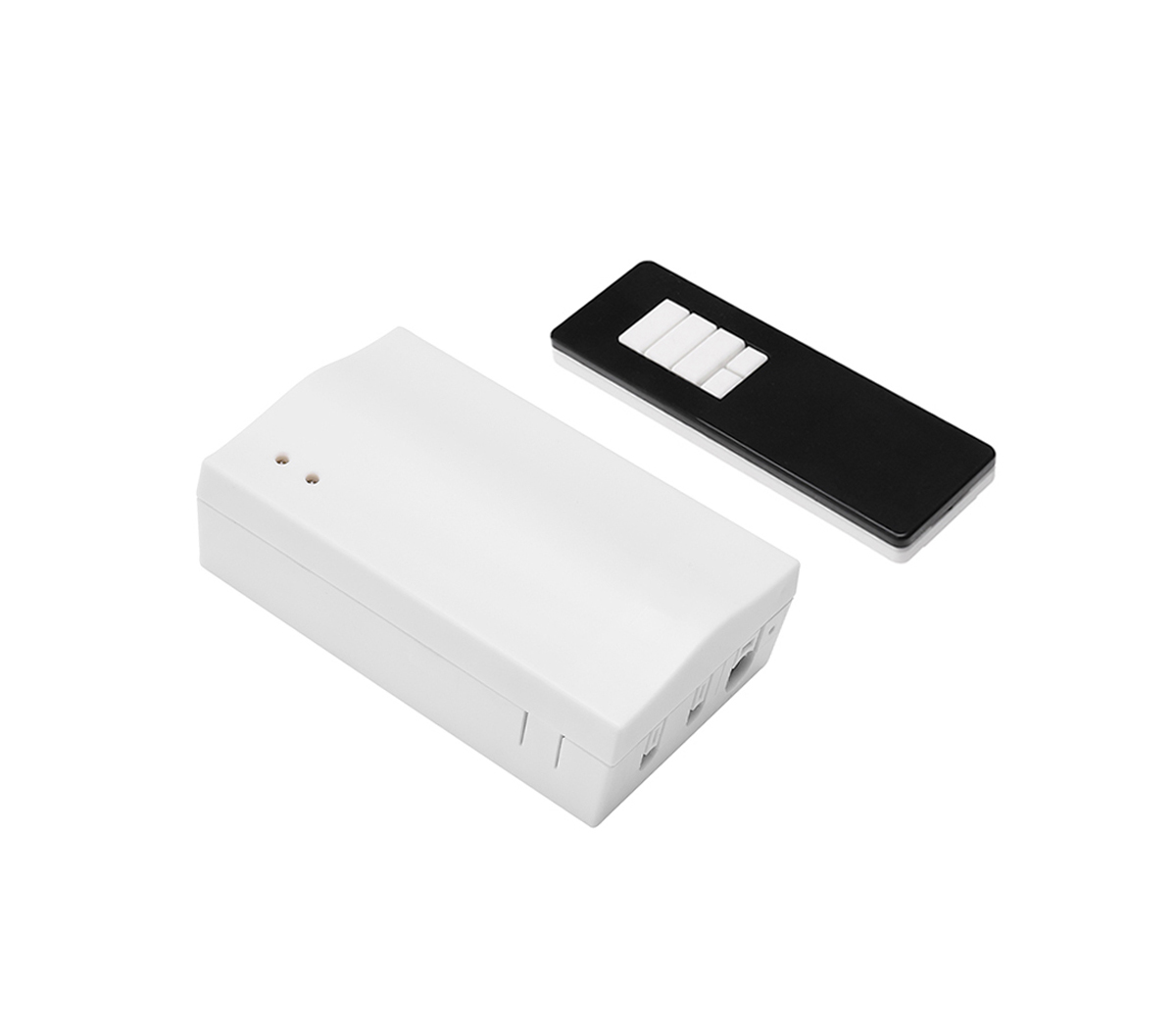

External wireless receiver assembly

Introduction to Functions

External wireless receiver (1gd-868m)

Transmitting / receiving distance: 25m

Parameters: AC220V / 50Hz, AC110V / 60Hz

Current: maximum load current 5A

Single channel wireless remote control (gf-06)

Battery parameters: dc3v (AAA * 2 battery)

major function

Product Index

Dispose

Basic control mode

parameter

Product Model

1GD-868M

- Overall dimension(D*W*H)(mm)

  130x80x43.2
- Net weight(kg)

  0.24
- Rated power(w)
- Maximum telescopic stroke(mm)
- Lifting accuracy(mm)
- noise(dB)
- Voltage(v)

  AC110v/220v
- jib attachment(mm)
- Door frame shape(mm)
- Ceiling openings(mm)
- Ceiling height(mm)
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  0.24
- Package size (D*W*H)

  130x80x43.2
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
