GSRB SERIES MULTI PURPOSE MOUNT

Introduction to Functions

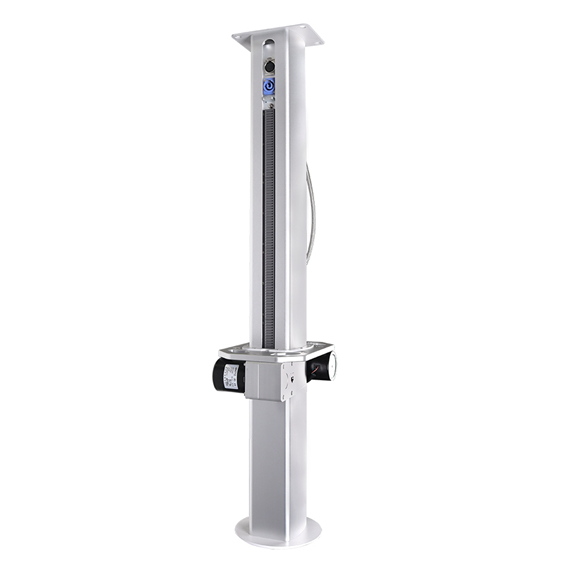

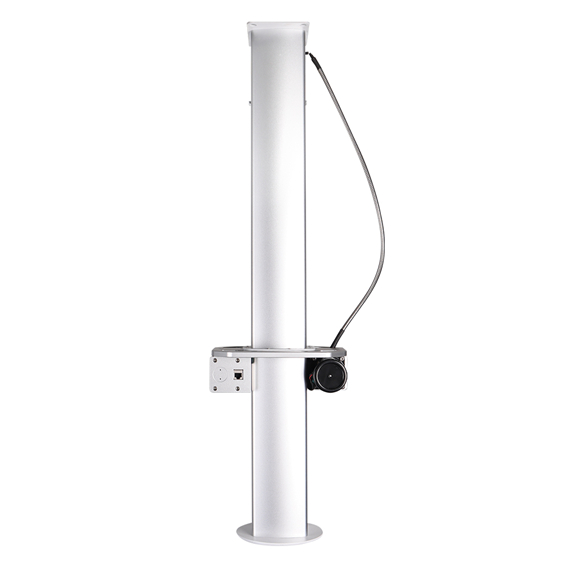

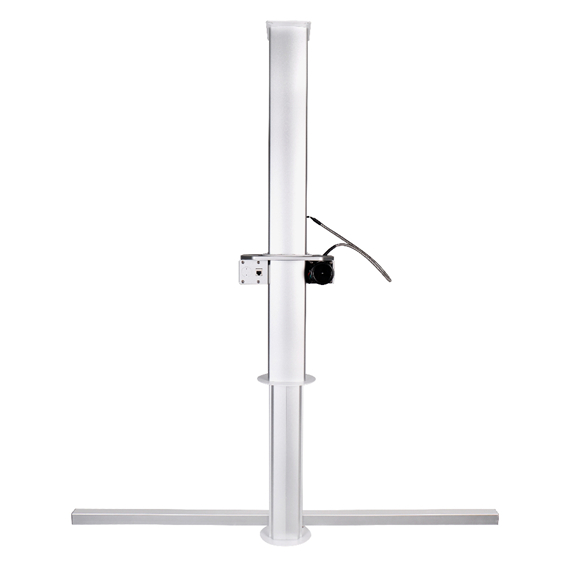

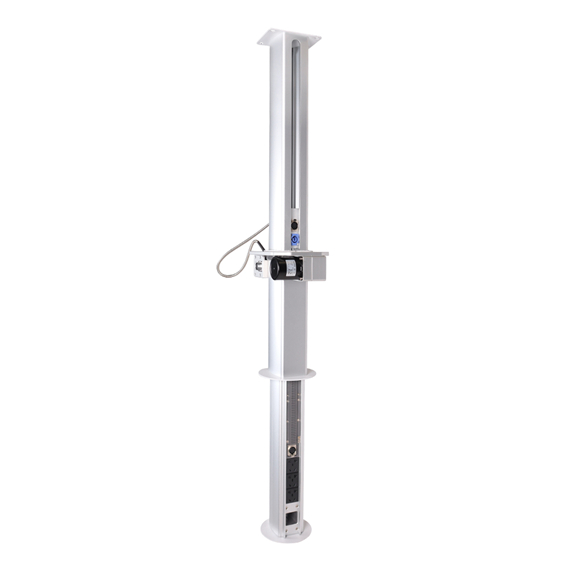

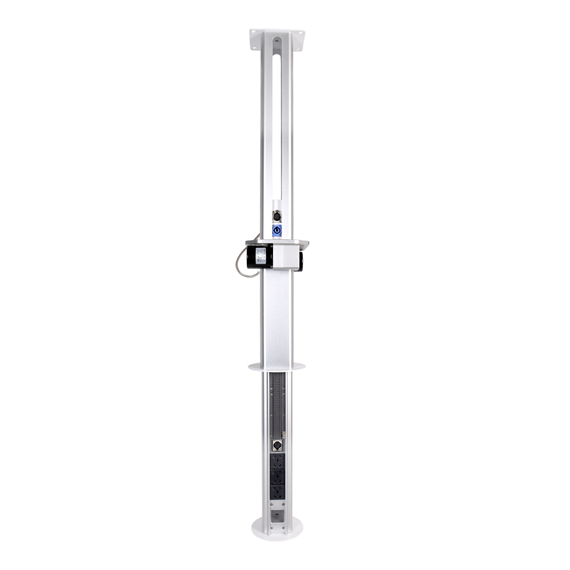

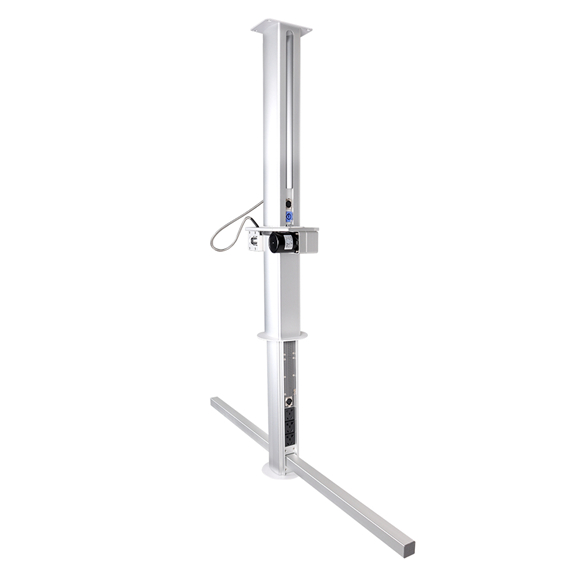

The electric telescopic lighting boom is specially used for the temporary hoisting of stage lighting equipment. It is suitable for the space where the hoisting points are scattered, the building height is limited, and the net height in the ceiling is low.

major function

Fixed extension distance：300-450mm

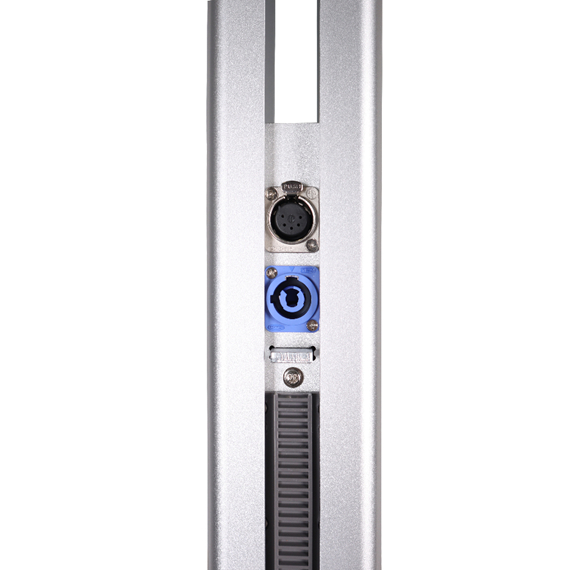

Power supply voltage and current 220V AC /3 groups of 16A output, two groups of DMX512 signal output
Control mode: independent manual control and customized RS485 control
Operation mode: motor low speed action
Lifting method: Press the key to rise or fall
Safety protection device After the square tube is inserted, it is interlocked, and it is forbidden to rise and fall.

Product Index

Dispose

Basic control mode

parameter

Product Model

GSRB-3003
GSRB-3004

- Overall dimension(D*W*H)(mm)

  165×242×798
- Net weight(kg)

  10
- Maximum load(kg)

  300
- Rated power(w)

  60
- Maximum telescopic stroke(mm)

  300
- Lifting accuracy(mm)

  ＜1mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220V/110V
- jib attachment(mm)

  130X90
- Door frame shape(mm)
- Ceiling openings(mm)

  φ175
- Ceiling height(mm)

  ≥848
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  11.5
- Package size (D*W*H)

  300x843x230
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
- Overall dimension(D*W*H)(mm)

  165×242×925
- Net weight(kg)

  12.6
- Maximum load(kg)

  300
- Rated power(w)

  60
- Maximum telescopic stroke(mm)

  450
- Lifting accuracy(mm)

  ＜1mm
- noise(dB)

  ≤55dB
- Voltage(v)

  220/110
- jib attachment(mm)

  130x90
- Door frame shape(mm)
- Ceiling openings(mm)

  φ175
- Ceiling height(mm)

  ≥975
- Angle adjustment(Upper/Lower/Level)
- Weakness Dry Contact(Y/N)

  √
- Wireless remote control(Y/N)

  √
- CAT6 network cable
- HDMI 2.0
- Power cord
- 485 Control (Y/N)

  √
- Total weight of package + product (kg)

  14.6
- Package size (D*W*H)

  300x970x230
- Wireless Control(Y/N)
- Suitable hole spacing of projector (mm)
- Optional control mode
